RFーAMP基板 1

Seller: masuki_co(465 99.8% positive)

Buy Now Price

1,000 JPY

0 bids Ends in ・May/17/2025 02:06:31(Tokyo)

Condition: Unused

Domestic Shipping (Japan) Paid By: The shipping mentioned here pertains to the delivery from the seller to the BuyJapon warehouse. You will still be responsible for the shipping fee to have the package sent from the BuyJapon warehouse to your address. Buyer
Early Finish: If this option is set to "Yes," the seller has the ability to end the auction before the scheduled closing time. The highest bidder at the moment of termination will be declared the winner. Yes
Automatic Extension: If this option is set to "Yes," and a higher bid is placed within the last 5 minutes of the auction, the original ending time will be extended by an additional 5 minutes. This extension will occur each time the highest bid is updated. No
Auction ID: l1184171490
Original Japanese name: RFーAMP基板 1
View on Yahoo! Auction

Item Description

Translation is provided as a convenience. You agree that you understand the original auction details written in Japanese and are fully responsible to bid on this item.

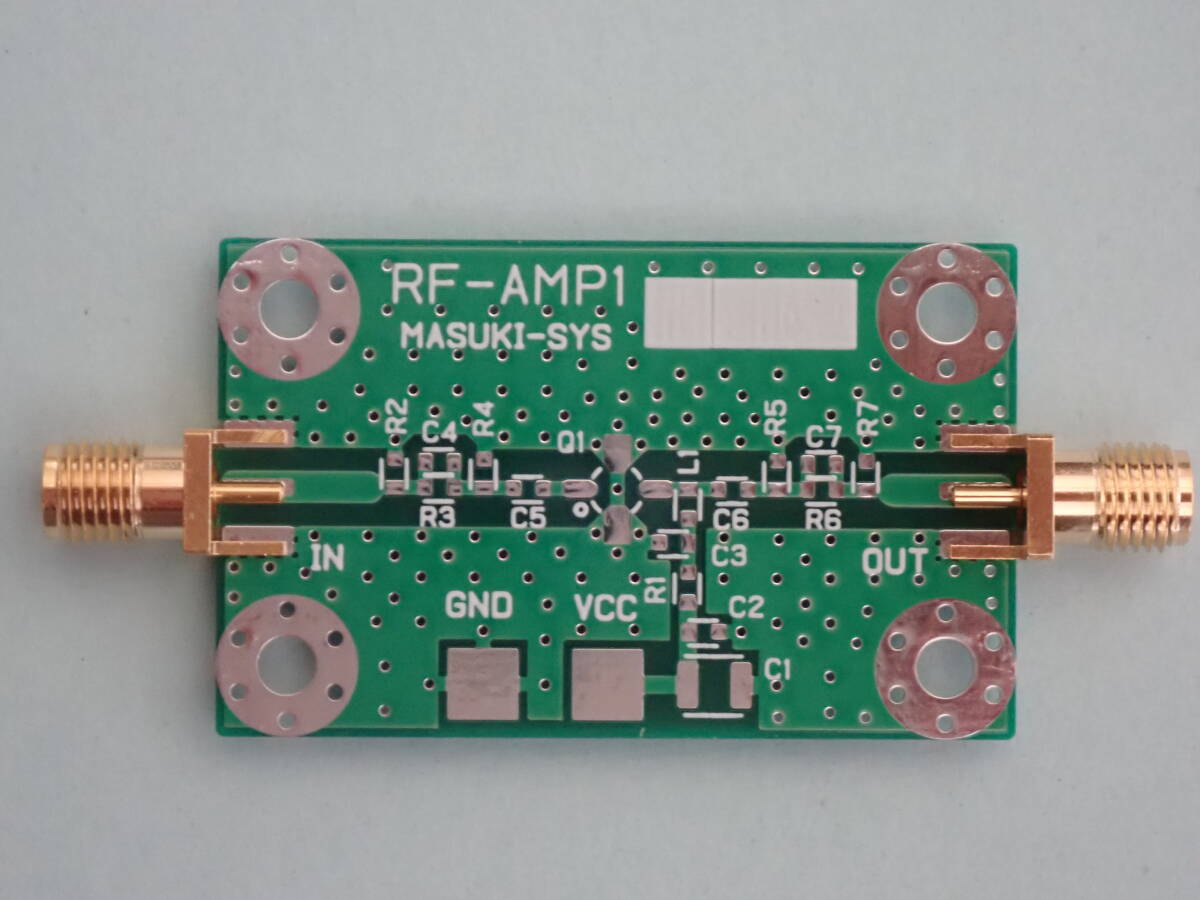

ミニサーキット RF-AMP用 1段ampプリント板
SMAコネクタ付

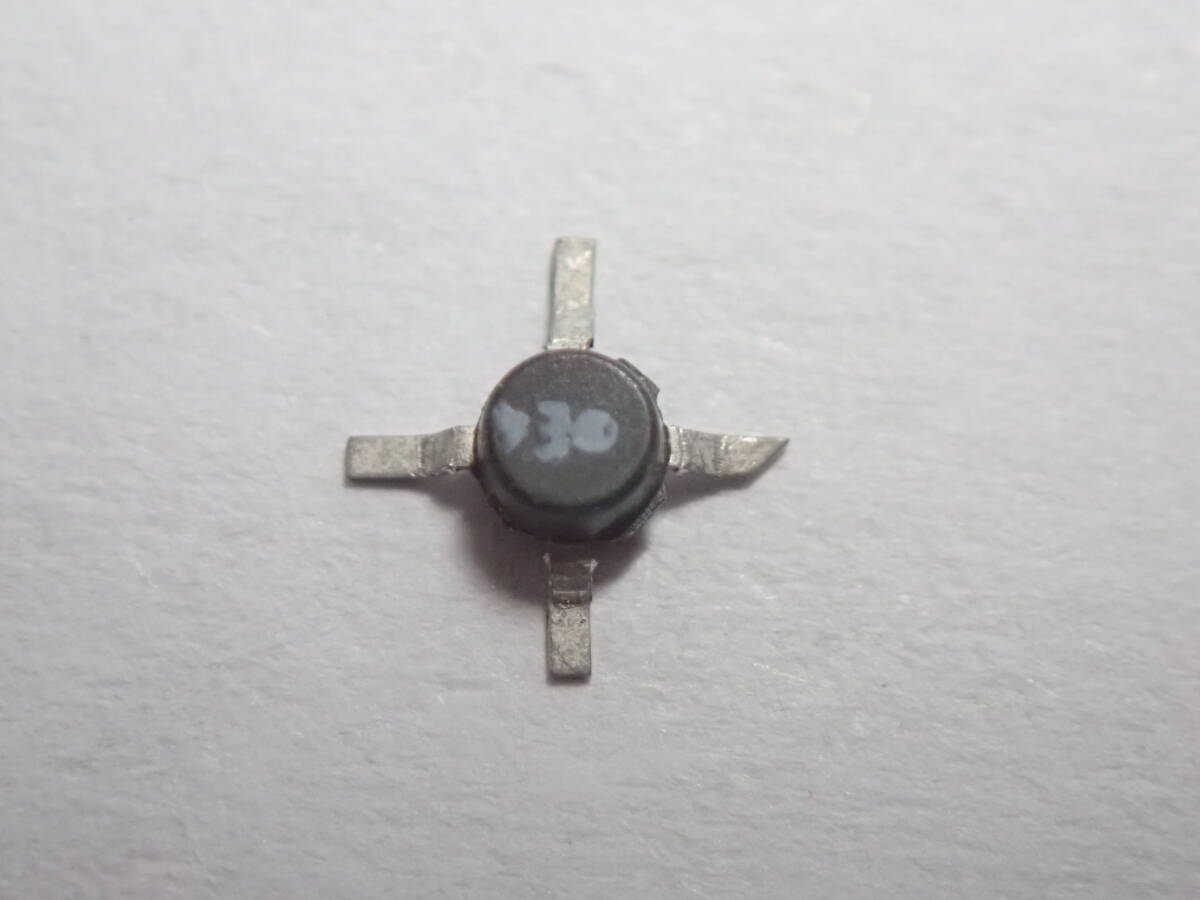

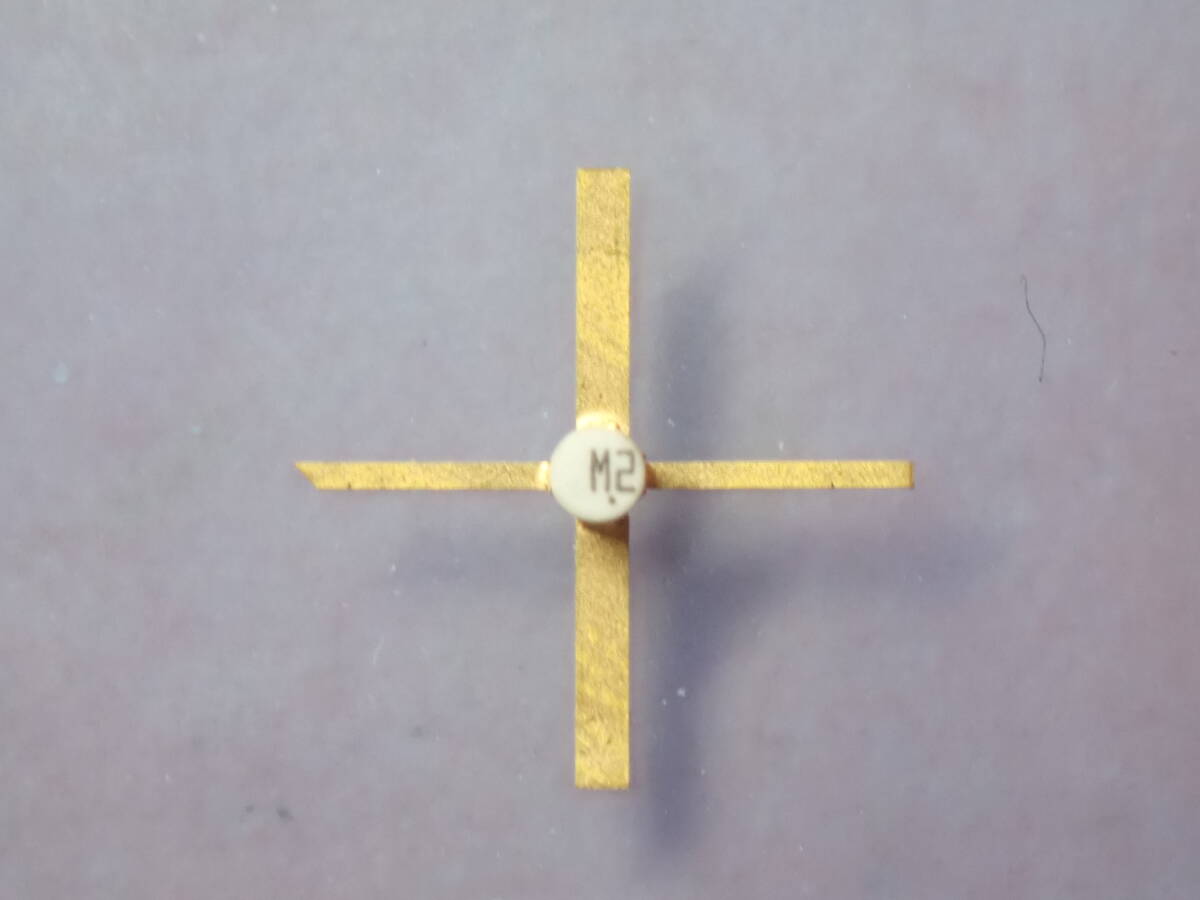

ミニサーキット RF-AMP
シリーズ

ERA
MAR

他 パターンの乗る形状のIC

の評価、組み込みに使用できるプリント基板です


入出力   SMA   ( 50Ω )

太いパターンは50Ωのマイクロストリップラインです


途中のπ型回路は マッチング調整、ATTに使用出来ます

チップは1608サイズです

使用しない時は 0Ω抵抗でスルーします

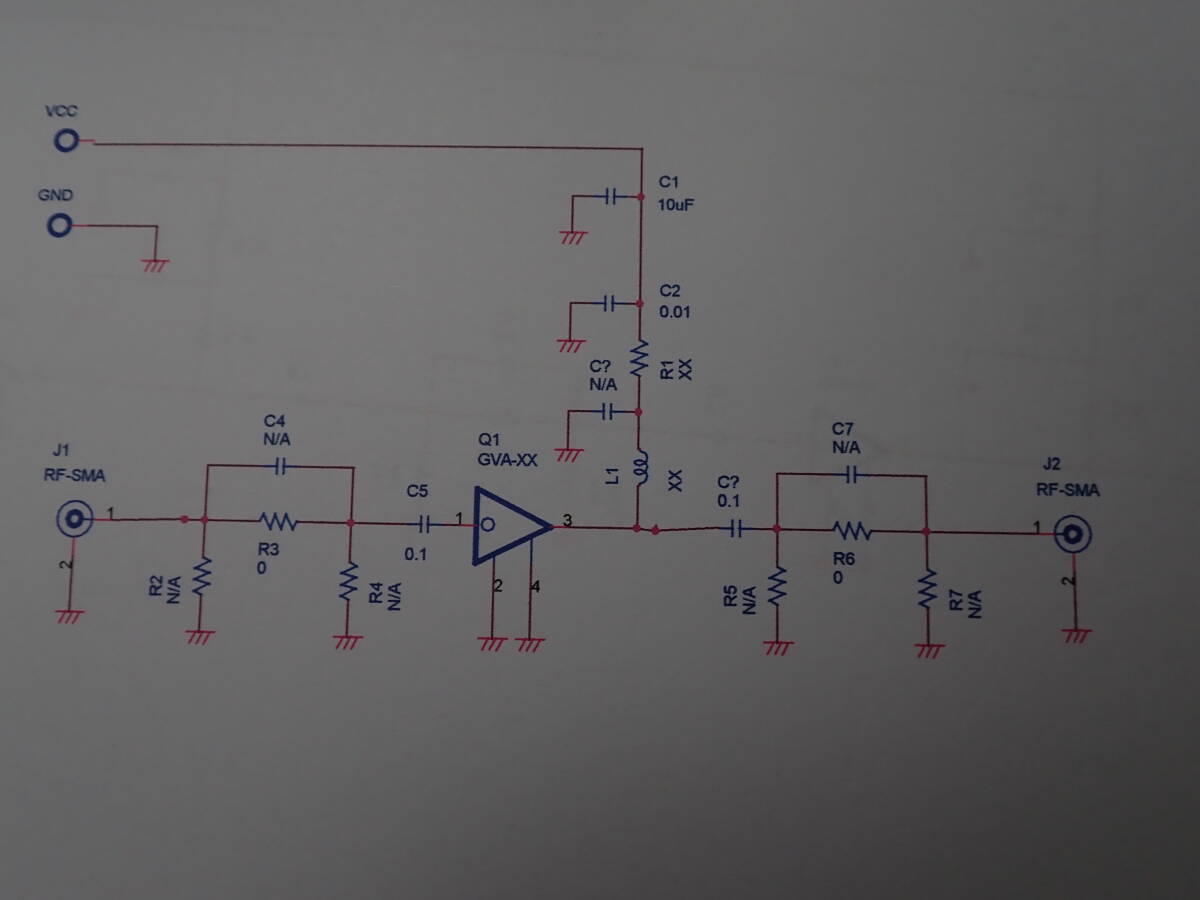

サンプル回路図の様に組み立てすると動作すると思います

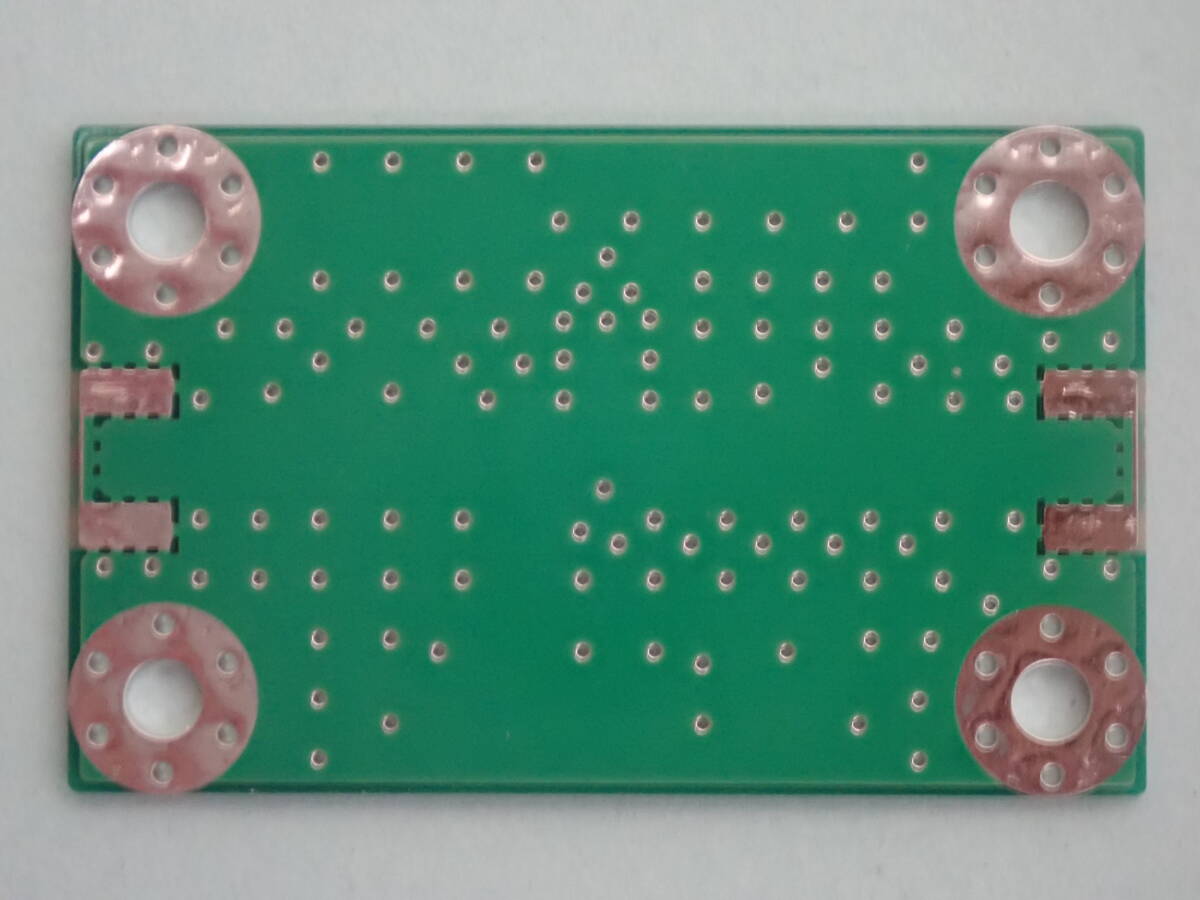

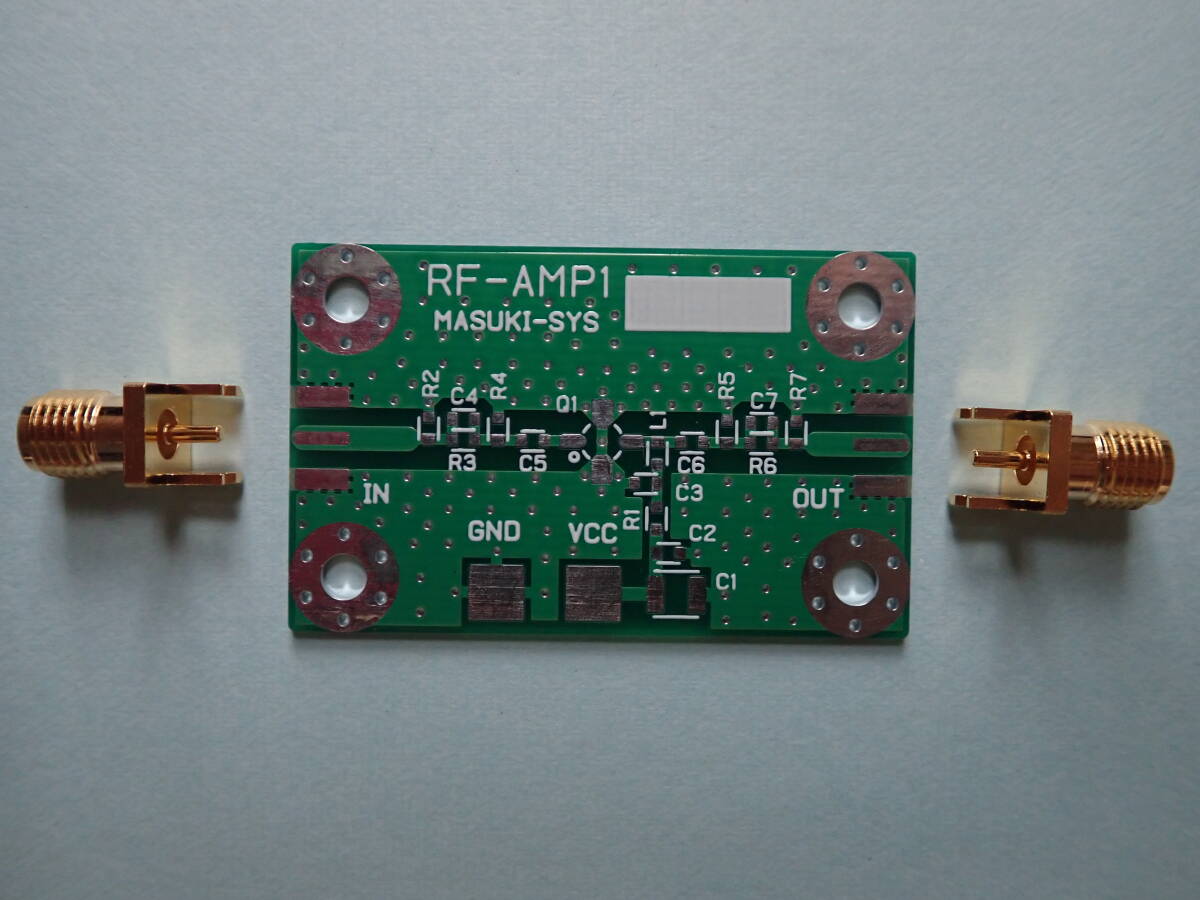

出品は    プリント基板     x 1
           SMAコネクタ     x 2

                  の1SETです


安価に提供する為 普通郵便での発送と成ります
